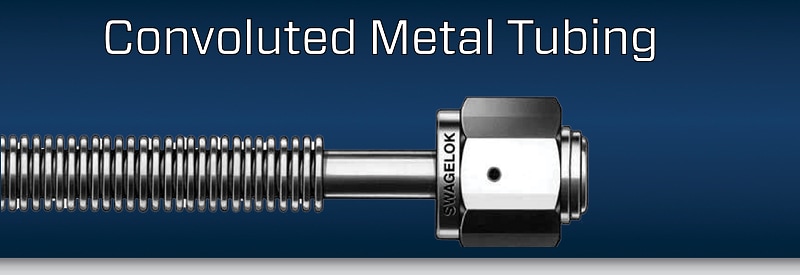

Vacuum Flexible Tubing Convoluted 321 SS
Convoluted flexible metal tubing and hose can compensate for misalignment and system reroutes between static connections in vacuum or low-pressure static applications. Swagelok CT convoluted vacuum flexible tubing can be compressed by at least 15 % and extended up to 50 % of manufactured length. Standard and custom tubing lengths, custom tubing assemblies, and adapters for field assembly are available.
Features
- Form-fit-and-stay, flexible, all-metal tubing
- 321 stainless steel annular convoluted core
- Form-fit-and-stay capability of convoluted tubing can compensate for misalignment and system reroutes between static connections in vacuum or low-pressure static applications.
- Commonly used in high-temperature vacuum or low pressure static applications
- Standard and custom tubing lengths, custom tubing assemblies, and adapters for field assembly are available
Specifications
| Nominal Tubing Sizes | 1/4 through 1 1/2 in. |
| End Connections |
|
| Factory and field assembly: | Swagelok VCR® metal gasket face seal fittings; VCO® O-ring face seal fittings; XBA adapters for connecting to socket and butt weld fittings, Swagelok tube fittings, and Ultra-Torr™ vacuum fittings |
| Field assembly only: | XOA adapters to support the tubing cuff with Ultra-Torr vacuum fittings |
"Safe Product Selection:
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
|
